4-Spot vs. 3-Spot vs. 5-Spot: How Many Collection Circles Does Your DBS Card Really Need?

If you’ve ever looked at a dried blood spot (DBS) card and wondered why some have three circles, some four, and some five — you’re not alone. At first glance, those little printed rings might seem like a design afterthought. But in reality, the number of spots on a DBS card is one of the most consequential decisions you’ll make in your sampling workflow.

Choose too few, and you risk losing an entire sample to a single bad spot. Choose too many, and you may be wasting patient blood, lab time, and automation efficiency. So what’s the sweet spot? Let’s break down the real trade-offs between 3‑spot, 5‑spot, and the increasingly popular 4‑spot format — and why the industry is quietly converging on four as the goldilocks number.

What the Number of Spots Actually Means in DBS Sampling

First, let’s clear up a common misconception: the circles on a DBS card are not decorative. Each spot is a discrete sample area designed to hold a precise volume of blood (typically 30–50 µL). The total number of spots determines three critical things:

• Sample redundancy – If one spot is incompletely filled, clotted, or contaminated, you still have others to fall back on without recalling the patient.
• Assay multiplexing – More spots allow you to run multiple different tests (e.g., HIV, HBV, HCV, and a genetic marker) from a single finger prick.
• QC and replication – Laboratories often need technical replicates to ensure result reliability. Extra spots make that possible without extra patient visits.

In clinical practice, many workflows already require 4 to 6 blood spots per patient to cover routine screening panels and confirmatory testing. That real‑world need is precisely why four‑spot cards have emerged as the most logical, balanced format — not too few, not too many, but just right for the majority of modern applications.

Three‑Spot Cards: When Compact Design Meets Limitations

Three‑spot DBS cards still have their place. They are lightweight, simple, and inexpensive — which makes them attractive for single‑analyte screening programs in resource‑limited settings, or for research applications where only one or two targets are measured.

Where they work

• Single‑disease newborn screening (e.g., only phenylketonuria)
• Therapeutic drug monitoring for a single drug
• Low‑volume pilot studies with limited assay panels

Where they fall short

The biggest problem with three spots is lack of redundancy. If one spot is rejected due to insufficient blood, hematocrit effects, or processing error, you are left with only two spots. For many quality protocols, that fails the “two acceptable spots” requirement — forcing a complete re‑sample. In newborn screening, a repeat heel prick is not only stressful for the infant and parents, but also delays diagnosis.

Three spots also struggle with multiplexing. A modern infectious disease panel (e.g., HIV viral load + HBV DNA + HCV RNA) typically needs at least three spots just for the primary tests — leaving no room for duplicates, no room for retests, and no room for a control spot. You are running without a safety net.

Bottom line: Three‑spot cards are fine for very narrow, low‑stakes testing. But for any scenario where sample integrity matters — which is almost all clinical diagnostics — three spots simply don’t provide enough margin for error.

Five‑Spot Cards: More Is Not Always Better

If three is too few, surely five must be better, right? Not necessarily. Five‑spot cards exist, but they come with their own set of practical headaches.

The redundancy paradox

Five spots do give you excellent redundancy. You could lose two spots and still have three usable ones. But how often do you really need that level of backup? For the vast majority of DBS applications, two to three acceptable spots are sufficient for primary testing and one repeat. Five spots often exceed what any quality protocol demands — meaning you are collecting blood that will never be used.

Patient and operator burden

• More blood volume – Five spots require roughly 150–250 µL of blood, compared to 120–160 µL for four spots. That may not sound like much, but for neonates or patients with difficult venous access, every drop counts.
• Longer collection time – Filling five circles takes more time, increasing the chance that blood dries on the fingertip before the last spot is filled, leading to inconsistent spot quality.
• Higher rejection risk – More spots mean more opportunities for partial fills, channeling, or layering errors.

Automation compatibility: not always linear

One surprising lab feedback we have heard repeatedly is that five‑spot cards do not proportionally improve throughput on automated punching systems. Most high‑volume DBS analyzers (e.g., for newborn screening or PK studies) are optimized for 4‑spot workflows — they punch two or four spots per card in a predictable pattern. A fifth spot often becomes an “orphan” that doesn’t fit into the automation sequence, or it requires manual intervention. In some cases, labs simply ignore the fifth spot.

So while five spots give you theoretical extra capacity, in practice they add complexity, blood volume, and cost — with diminishing returns.

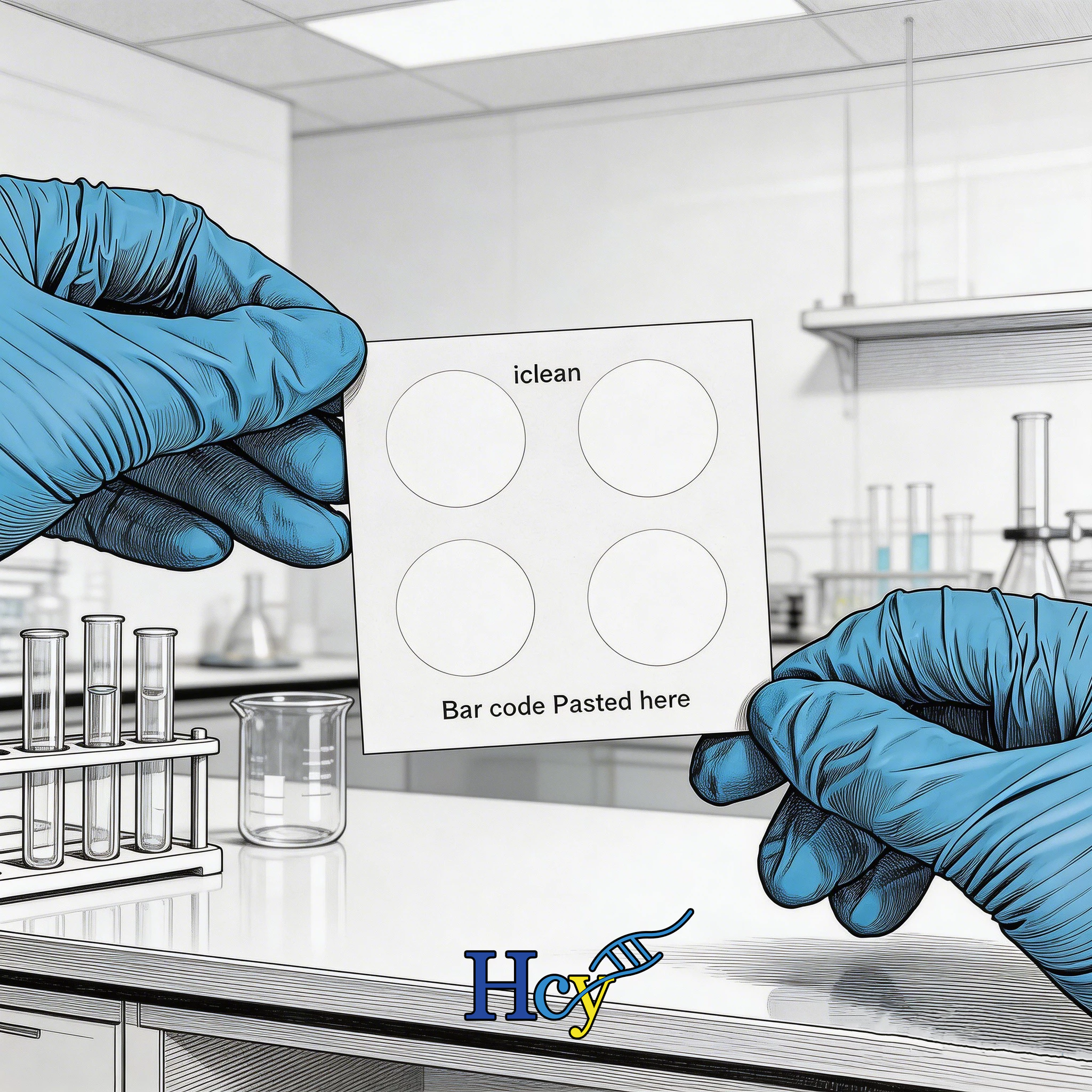

Why Four‑Spot Cards Have Become the Industry Goldilocks Zone

After evaluating the extremes, the four‑spot format emerges as the most balanced, evidence‑backed choice. Here’s why laboratories, screening programs, and manufacturers alike are converging on four spots as the new standard.

1. Optimal redundancy without waste

Four spots give you exactly what most clinical protocols require: one primary test spot, one confirmatory spot, one quality control spot, and one backup. You can afford to lose one spot to a filling defect and still have three clean spots for a full testing panel. At the same time, you are not collecting blood that will never be used — unlike five‑spot cards.

2. Natural fit for multiplex assays

Infectious disease monitoring (HIV/HBV/HCV), newborn screening for 40+ metabolic disorders, and pharmacokinetic studies often require 3–4 distinct analyses per patient. A 4‑spot card allows you to run those assays in parallel without cross‑contamination, and still have a spot left for a negative control or a repeat.

3. Compatible with mainstream automation

Most automated DBS punching and elution systems — from PerkinElmer, Camag, and other major platforms — are designed with 4‑spot workflows in mind. A well‑manufactured 4‑spot card will feed cleanly into these systems, with precise alignment and consistent punch positioning.

For example, a high‑precision 4‑spot DBS card like the one from Huayangyang Technologyachieves aperture consistency of ±0.1 mm — a critical specification for automated punchers. When the spot positions vary by less than a tenth of a millimeter, the punch head hits the target every time, reducing rejects and rework.

4. Faster drying, better stability

Drying time is a hidden but crucial variable. If spots dry too slowly, analytes can migrate to the edges (the “coffee ring” effect), and blood cells may lyse unevenly. A 4‑spot card, with its moderate total blood volume, can achieve room‑temperature drying in approximately 2.5 hoursunder standard conditions. This is faster than many 5‑spot cards (which hold more blood and therefore take longer), while still being robust enough for ambient shipping.

Faster drying also means better long‑term stability for labile analytes like RNA, certain hormones, and oxidative markers. In side‑by‑side tests, properly dried 4‑spot cards have shown excellent DNA stability for up to five years at room temperature.

In short: four spots give you the efficiency of three with the safety margin almost as good as five — but without the waste and automation headaches. That’s why experienced lab managers and public health programs are quietly moving away from both 3‑spot and 5‑spot designs and standardizing on four.

Key Specifications to Evaluate When Choosing a 4‑Spot DBS Card

Not all 4‑spot cards are created equal. If you’ve decided on the format, the next question is: which 4‑spot card should you trust? Here are the specifications that actually separate good cards from great ones.

When you look at these parameters, one product line that consistently meets or exceeds these targets is the Huayangyang 4‑Spot DBS Card. It offers ±0.1 mm aperture precision, room‑temperature drying around 2.5 hours, and is manufactured under ISO 13485 with multiple international registrations (NMPA, CE, TGA, MDEL, TFDA, MHRA). It is not marketed with loud “best” claims — instead, the data speaks for itself.

A Quick Selection Checklist for Different Application Scenarios

Not every lab needs the same DBS card. Use this checklist to match the spot count to your specific use case.

Newborn screening

• Recommended format: 4‑spot (industry standard)
• Why: Modern NBS panels screen for 40–50 disorders, requiring multiple assays plus confirmatory spots. Four spots give you the flexibility without overwhelming the heel prick. Many public health programs explicitly specify 4‑spot cards.

Infectious disease monitoring (HIV, HBV, HCV, etc.)

• Recommended format: 4‑spot
• Why: Multiplex PCR assays need separate spots for each pathogen plus a quality control. Three spots are too few; five are overkill. Four is the sweet spot.

Therapeutic drug monitoring (TDM) and pharmacokinetic studies

• Recommended format: 4‑spot or 5‑spot (depending on study design)
• Why: For TDM with only one drug, 3‑spot may suffice, but most PK studies require time‑series replicates. Four spots provide enough technical repeats without excess patient burden. If your protocol demands four time points per card, you might need five — but first check whether a second 4‑spot card is simpler.

Large‑scale population biobanking

• Recommended format: 4‑spot or multiple 4‑spot cards
• Why: Long‑term storage benefits from redundancy and aliquot separation. Four spots per card, with multiple cards per participant, is a proven model.

Frequently Asked Questions About DBS Card Spot Design

Q1: Can I use a 3‑spot card for a 4‑plex assay?
No. A 3‑spot card physically only gives you three discrete sample areas. Running four different assays from three spots is impossible without cross‑contamination or extreme sample dilution. You would need at least four spots.

Q2: Does more spots always mean more sample volume required?
Yes — each spot typically needs 30–50 µL of blood. More spots mean higher total blood volume. That’s why 5‑spot cards are not automatically better: you may be taking more blood than necessary, which is especially important in neonatal or pediatric settings.

Q3: Are all 4‑spot cards compatible with all automated punchers?
Not automatically. Compatibility depends on the card’s physical dimensions, spot spacing, and registration marks. A well‑designed 4‑spot card, such as those from Huayangyang, with ±0.1 mm aperture consistency and standard spacing, will work seamlessly with most popular automated punchers. Always request a sample for a dry‑run on your specific equipment.

Q4: Can I cut a 5‑spot card down to 4 spots?
Technically yes, but it’s not recommended. Cutting the card manually can damage the paper matrix, introduce contamination, and void any quality certifications. If you need a 4‑spot workflow, buy a purpose‑built 4‑spot card.

Q5: How long can a 4‑spot DBS card store DNA at room temperature?
With a high‑quality chemical coating (like FTA or similar), DNA remains stable for years. Huayangyang’s 4‑spot cards, for example, have demonstrated DNA stability for up to 5 years at room temperature when stored in dry, dark conditions.

Conclusion: The Goldilocks Number Is Four

When you step back and look at the full picture — clinical requirements, patient comfort, lab automation, and long‑term data quality — the case for the 4‑spot DBS card becomes overwhelming. Three spots leave you exposed to a single point of failure. Five spots add unnecessary blood volume, drying time, and automation friction. Four spots hit the perfect balance: enough redundancy to protect against errors, enough capacity for multiplex assays, and a format that modern laboratory instruments already love.

If you are currently using 3‑spot or 5‑spot cards, it may be worth running a small pilot with a high‑quality 4‑spot alternative. Pay attention to the aperture precision, drying time, and how smoothly the card feeds into your automated punchers. Chances are, you will see fewer rejects, better repeatability, and a simpler workflow.

And when you do test 4‑spot cards, keep an eye on the technical specifications that really matter — because in DBS sampling, the difference between “good enough” and “truly reliable” is often hidden in the numbers. Not in the marketing claims.
